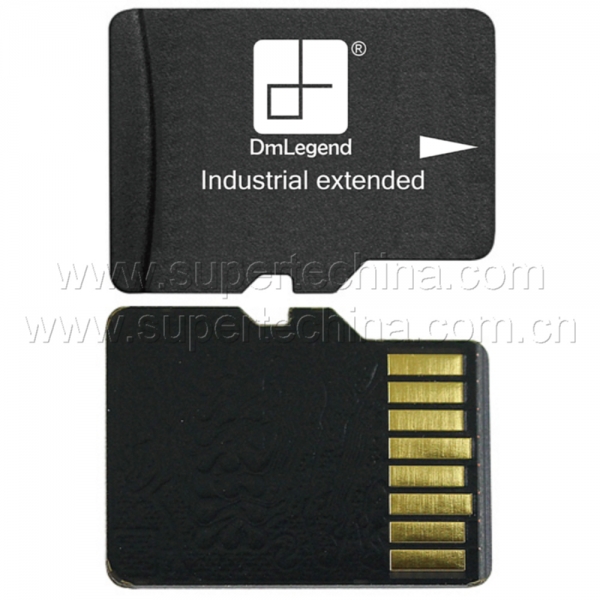

Industrial extended Micro SD card
Supertechina extended Micro SD card adopted original and good die SLC/MLC/TLC-3D nand flash chips and specific controllers which assured stable and high compatibility. In addition, special materials are used in special hard situation in order to assure that memory card can be used in extremely hot and cold temperature.
| Specification: | |
| Capacity: | 32MB/64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB/64GB/128GB/256GB |
| Micro SD card kinds: | Micro SD card, Micro SDHC card, Micro SDXC card |
| Nand flash chips kinds: | SLC/MLC/TLC-3D |
| Nand flash chips grades: | Original and good die |
| Industrial special material to keep cards to work best in extremely cold and hot working temperature | |
| Data and files in industrial extended cards well protected in extremely cold and hot temperature | |
| SLC or MLC original flash chips | |
| Strong compatibility controllers and solution | |
| Industrial production procedure | |
| Severe quality control and serious testing required | |
| Support CPRM(Content Protection for Recordable Media) | |
| Support In System Programming (ISP) function to load the firmware | |
| Supports power down commands and sleep modes | |
| Low power consumption: | Automatic power down and automatic wake up, smart power management |
| Non-volatile storage and no battery required | |
| Low weight | |
| Noiseless | |
| Low profile | |
Technical parameter: |
|
| Humidity: | 8% to 95%, non-condensing |
| MTBF: | >1, 000, 000 hours |
| Durability: | Minimum 10, 000 insertion/removal cycles |
| Voltage range for communication: | 2.0~3.6V |
| Voltage range for operating: | 2.7~3.6V |
| Variable clock rate: | 0~25MHz |
| Storage temperature: | -40 ℃ - 100 ℃ |
| Regular operating temperature: | -25 ℃ - 85 ℃ |
| Extended operating temperature: | -40 ℃ - 85 ℃ |
| Shock: | 1, 000g/Max |
Certificate: |
|
| CE | |
| FCC | |
| ROHS | |
Quality warranty term: |
|
| 5 years | |
